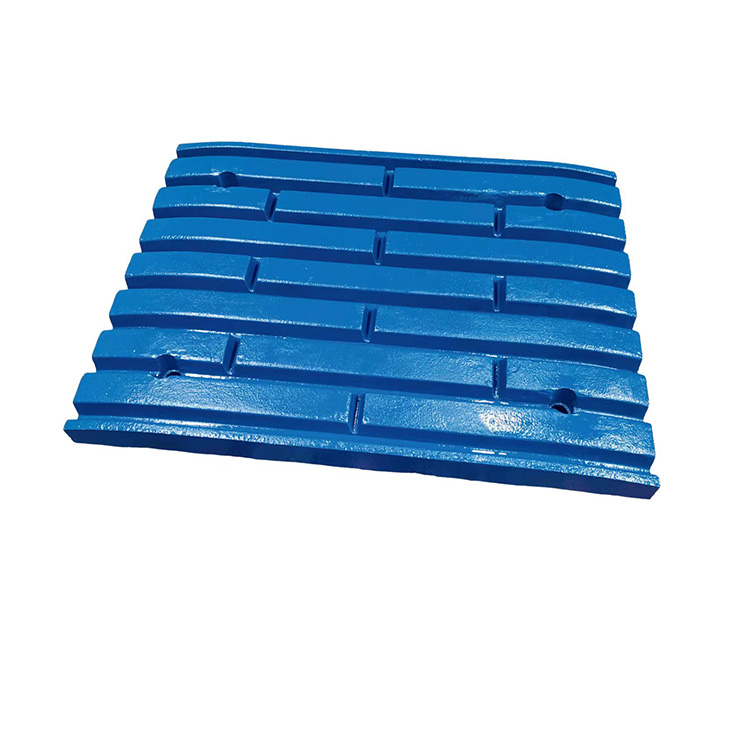

In a jaw crusher, Swing jaw plate (also called dynamic jaw plate or movable jaw plate) is one of the core working parts, which cooperates with the fixed jaw plate to complete the material crushing operation. Its structural design, material selection and working performance directly affect the crushing efficiency, product particle size and equipment life of the crusher.
Premium Jaw Crusher Plates – Engineered for Extreme Abrasion
Material & Manufacturing
Grade Options: Mn18Cr2, Mn22Cr3, TIC Insert Alloy (for ultra-high abrasion).
Heat Treatment: Water-quenched for uniform hardness .
Microstructure: Austenitic manganese steel with carbide dispersion for optimal wear/impact balance.
Performance Data
Service Life: 1.5-2X longer than standard plates in granite crushing (tested at 800+ hours).
Compatibility: Precision-machined for Sandvik CJ411, Metso C96, Terex JW42, and other OEM models.
Certifications: ISO 9001, ASTM A128, with full traceability
Available models for cone crush parts | ||
shanbao | PY series | PYB/PYD600,PYB/PYZ/PYD900,PYB/PYZ/PYD1200,PYB/PYZ/PYD1750 |
PYF series | PYF900,PYF1300.PYF1600,PYF2100 | |
symons | FT series | 2FT,3FT,4FT,4-1/4FT,5-1/2FT,7FT |
Mettso | HP series | HP100,HP200,HP300,HP400,HP500,HPЗ,HP4,HP5,HP6,HP900 |
GP series | GP100,GP100S,GP200S,GP220,GP330,GP300S,GP550,GP500S,GP7 | |
Sanvick | CH/CS series | CH420,CH430,CH440,CH830i,CH840i,CH660,CH860i,CH865i,CH870i,CH880, CH890i,CH895i,CS420,CS430,CS440,CS840i,CS660 |
Trlo | TC series | TC36S,TC36SH,TC51S,TC51SH,TC66S,TC66SH,TC5,TC6, TC84, TC84X,TC84XXHD |
TP series | TP260,TP350,TP450,TP600,TP900 | |
Telsmith | Titan"T series | T200,T300,T400,T500,T900 |
SBS&SBx series | SBS38,SBS44,SBS52,SBS57,SBS68,SBX44,SBX52,SBX57 | |
Available models for jaw crusher parts | ||
Mettso | C series | C80,C96,C106,C116,C120,C130,C150,C160,C200 |
Sanvick | CJ series | CJ815,CJ615,CJ613,CJ612,CJ412,CJ411,CJ409,CJ211 |
Terex | JCjs/w series | JC5460,JC3660,JS4552,JS3750,JC2260,JW55,JW42 |
Telsmith | Telsmith | H2238,H2550,H3244,H3450,H4448,H5060,H3042,H3055,H3648,H3258,H3858 |
Shanbao | PE series | PE150x250,PE250x400,PE400x600,PE500x750,PE600x900,PE750x1050, |
PEX series | PEX250x750,PEX250x1000,PEX250x1200,PEX300x1300 | |
Other | All other famous brands in china and abroad, please contact our sales managers |
High manganese casting material chemical composition | ||||||
Material | C | Si | Mn | P | S | Cr |
Mn13Cr2 | 1.05-1.35 | 0.30-0.90 | 12-14 | ≤0.06 | ≤0.04 | 1.8-2.5 |
Mn18cr2 | 1.05-1.35 | 0.30-0.90 | 17-19 | ≤0.06 | ≤0.04 | 1.8-2.5 |
Mn21Cr2 | 1.05-1.35 | 0.30-0.90 | 20-23 | ≤0.06 | ≤0.04 | 1.8-2.5 |
