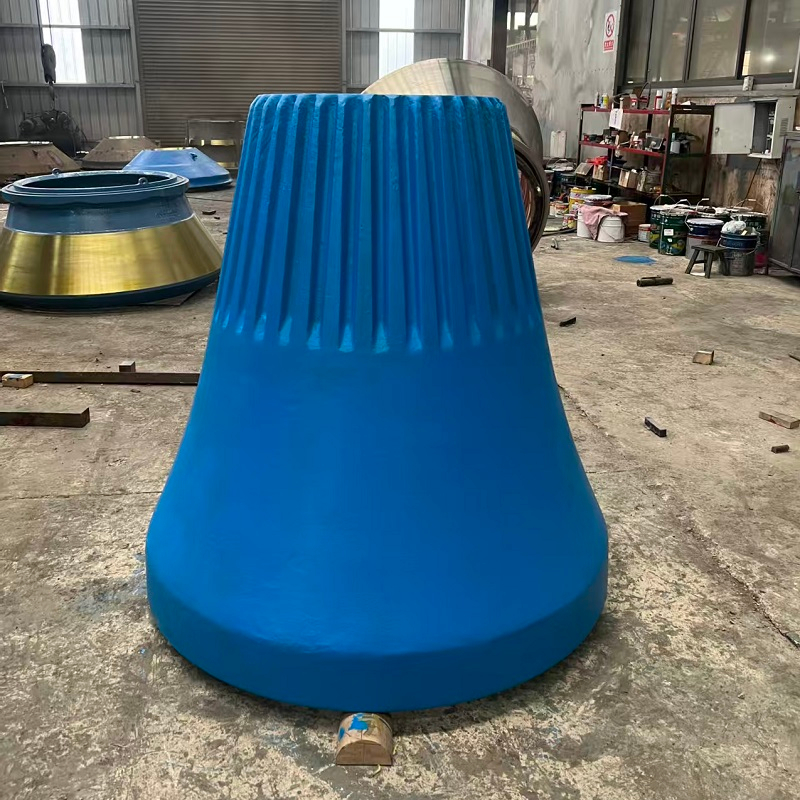

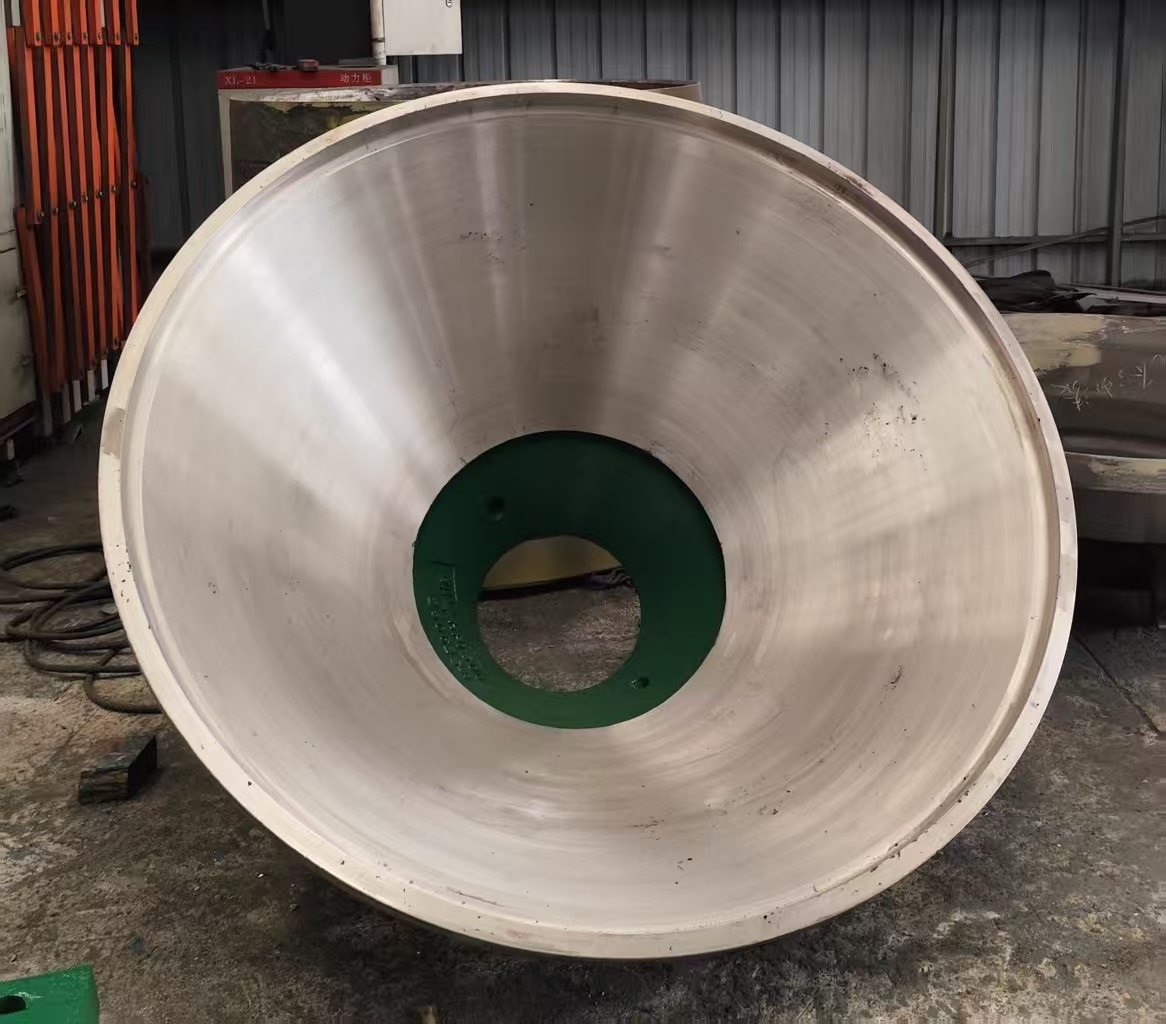

WHY CHOOSE SHAOFENG MANTLE & BOWL LINER PLATES?
Precise Match: We offer OEM-grade liners that are fully interchangeable with original equipment parts, ensuring worry-free installation.
Material Science: We offer a variety of wear-resistant material options to meet diverse operating conditions and cost-effectiveness requirements.
Excellent Lifespan: Optimized product design and manufacturing processes deliver superior wear resistance and significantly extended service life.
Win-Win Value: We maintain competitive pricing while ensuring long-term production.
Professional Support: We provide not only products but also professional services and technical advice based on our extensive experience.
HIGH MANGANESE STEEL CRUSHER WEAR-RESISTANT LINER
Core Material: Selected high-manganese steels from the Mn13Cr2 to Mn22Cr2 series ensure the optimal balance of high hardness and toughness in the base material.
Advanced Processing: Utilizing unique modification technology and sophisticated manufacturing techniques, the liner boasts enhanced work-hardening capabilities.
Measured Lifespan: Field-proven, service life is 10%-15% longer than liners made with traditional materials and processes.
Widely Applicable: Reliable performance meets a wide range of medium- to high-impact crushing conditions in industries such as mining, construction, cement, and metallurgy.
AVAILABLE MODELS FOR CONE CRUSHER PARTS | ||
shanbao | PY series | PYB/PYD600,PYB/PYZ/PYD900,PYB/PYZ/PYD1200,PYB/PYZ/PYD1750 |
PYF series | PYF900,PYF1300.PYF1600,PYF2100 | |
symons | FT series | 2FT,3FT,4FT,4-1/4FT,5-1/2FT,7FT |
Mettso | HP series | HP100,HP200,HP300,HP400,HP500,HPЗ,HP4,HP5,HP6,HP900 |
GP series | GP100,GP100S,GP200S,GP220,GP330,GP300S,GP550,GP500S,GP7 | |
Sanvick | CH/CS series | CH420,CH430,CH440,CH830i,CH840i,CH660,CH860i,CH865i,CH870i,CH880, CH890i,CH895i,CS420,CS430,CS440,CS840i,CS660 |
Trlo | TC series | TC36S,TC36SH,TC51S,TC51SH,TC66S,TC66SH,TC5,TC6, TC84, TC84X,TC84XXHD |
TP series | TP260,TP350,TP450,TP600,TP900 | |
Telsmith | Titan"T series | T200,T300,T400,T500,T900 |
SBS&SBx series | SBS38,SBS44,SBS52,SBS57,SBS68,SBX44,SBX52,SBX57 | |
CHEMICAL COMPOSITION & MECHANICAL PROPERTY OF HIGH MANGANESE MATERIALS
Material | Chemical Composition(%) | Mechanical Property | ||||||
| Mn | Cr | C | Si | S | P | Ak/cm | HB | |
| Mn13Cr2 | 12-15 | 1.7-2.2 | 1.15-1.25 | 0.3-0.8 | ≤0.04 | ≤0.06 | >140 | ≤220 |
| Mn18cr2 | 17-19 | 1.8-2.2 | 1.15-1.3 | 0.3-0.8 | ≤0.04 | ≤0.06 | >140 | ≤230 |
| Mn21Cr2 | 21-23 | 1.8-2.2 | 1.1-1.4 | 0.3-0.8 | ≤0.04 | ≤0.06 | >140 | ≤240 |
