JAW CRUSHER WEAR PARTS

SHAOFENG engineers jaw plates to order, offering a range of tooth profiles

and materials engineered for your specific operating conditions and crushing goals.

Home » Products » Jaw Crusher Wear Parts

Jaw crushers serve as the workhorses in mining, construction, and infrastructure projects, performing primary and secondary crushing tasks. The core of their crushing action lies in two critical components: the jaw plates.

At SF, we specialize in manufacturing these vital wear parts. Our jaw plates include the fixed jaw plate, which is securely mounted to the crusher frame, and the movable jaw plate, which moves in a periodic reciprocating motion against the fixed plate. Together, they form the crushing chamber that efficiently processes material through compression, bending, and impact.

Key Wear Parts We Produce:
Jaw Dies & Cheek Plates: These are the most susceptible to wear in any jaw crusher operation.
Superior Material Selection & Customization:
We offer a range of standard and high-performance materials to match your specific operational needs:
Standard Cheek Plates: Manufactured from durable 13% Manganese and 2% Chrome Iron.

Standard Jaw Plates: Cast from robust 18% Manganese and 3% Chrome Iron.

Custom & High-Performance Jaws: For extreme conditions, we can custom-design jaws from premium materials including:
High manganese steel inlaid with tic
High manganese steel inlaid with ceramic blocks
High manganese steel inlaid with high chromium blocks

Advanced Heat Treatment for Extended Service Life:

Each SF jaw crusher liner undergoes specialized heat treatment processes. This enhances the microstructure of the steel, resulting in superior wear resistance, toughness, and a significantly extended operational life. Customer reports consistently confirm that SF jaw crusher parts last 20-30% longer than conventional alternatives, reducing downtime and cost per ton.

SF – YOUR TRUSTED GLOBAL PARTNER FOR CRUSHER PARTS

SF's wear parts and spare parts have earned the trust of jaw crusher operators worldwide. We are proud to be the designated supplier for several of the world's leading mining companies, a testament to our commitment to quality, reliability, and performance.

Let us be your partner in productivity. Contact us today to find the perfect jaw crusher solution for your application.

Jaw Crusher Wear Parts

Jaw Crusher Wear Parts

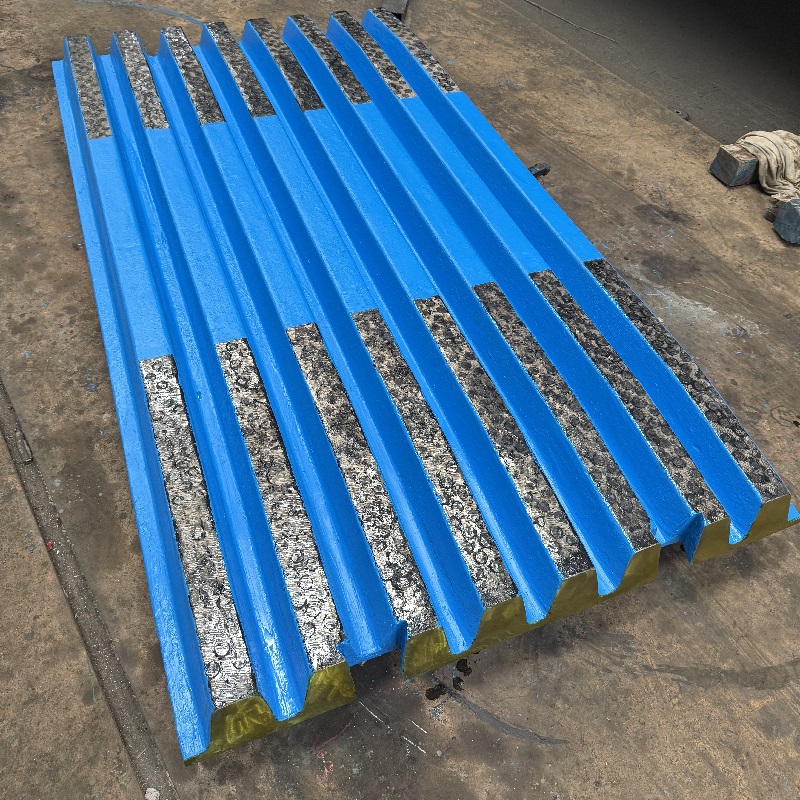

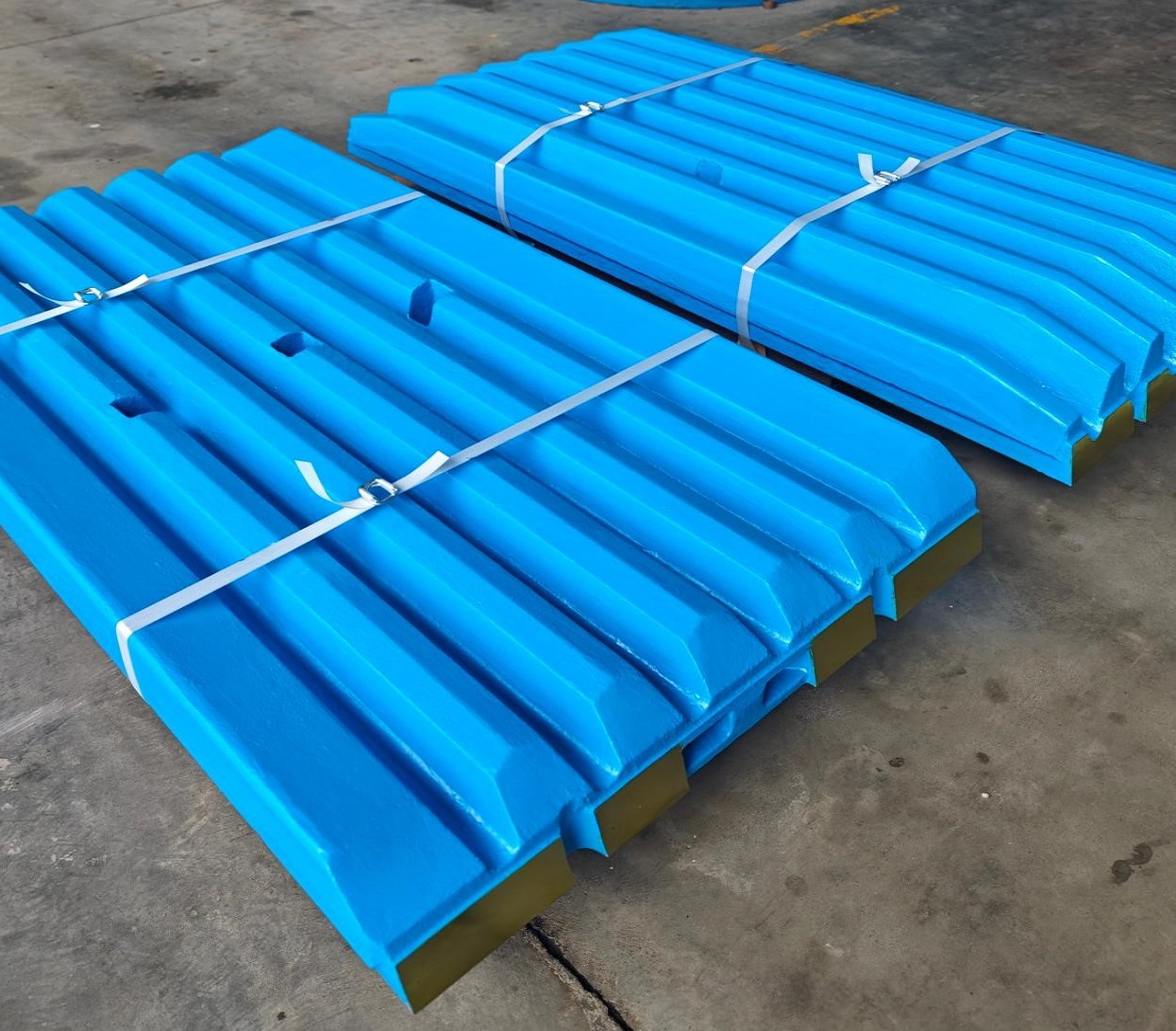

Fixed Jaw Plates | Movable Jaw Plates

As the core wear components in any jaw crusher, Jaw Plates (also known as Jaw Dies) are essential for maintaining optimal productivity. Their durability and quality directly impact crushing efficiency, final product output, and overall operational uptime.

Our jaw plates are offered in matched sets, comprising both the movable (or swing) jaw plate and the fixed (or stationary) jaw plate. During operation, the movable jaw exerts immense pressure, forcing the feed material against the fixed jaw to achieve powerful compression and breakage. The material is repeatedly crushed within the chamber until it is reduced to a size small enough to exit through the bottom gap

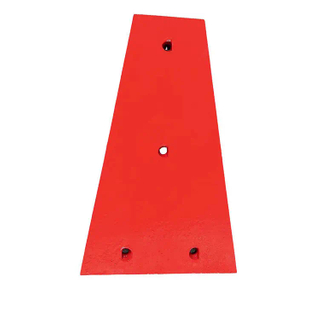

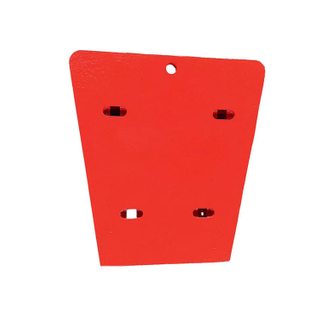

Side Plate

Side plates are one of the mainly replacement parts of jaw crusher.stop frequent replacements from cutting into your productivity. SHAOFENGI's jaw crusher cheek plates are forged from high-manganese steel (Mn13Cr2, Mn18Cr2, Mn22Cr2) for extreme wear resistance and impact strength.

With a vast inventory of thousands of patterns, we have the perfect-fit cheek plate for your machine. Reduce downtime and total operating costs with our reliable, high-performance wear parts.

Explore our full range of crusher wear parts, including jaw plates, wedges, toggle plates, eccentric shaft, jaw plate shim and adjustment wedge.

Looking for a custom wear parts solution?
