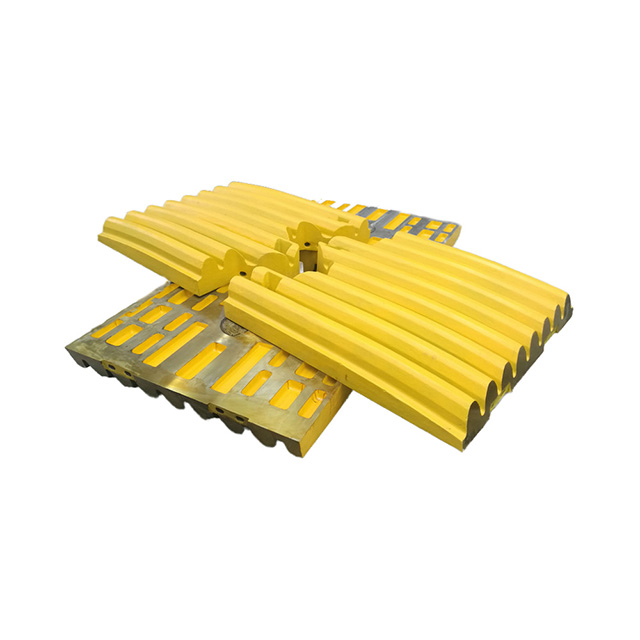

The jaw liner is a key component of the crusher. Our jaw liner plates are precision-crafted from premium manganese steel(Mn18Cr2/Mn22Cr2)to deliver unmatched durability in the most demanding crushing operations.Whether processing granite,basalt,or recycled concrete,these plates maintain optimal performance through extended service life.
Standout Features:
Advanced Metallurgy Special alloy composition and heat treatment for maximum hardness(HB 220-280)
Smart Tooth Geometry Engineered for optimal material flow and reduced energy consumption
Brand-Specific Fit Exact specifications for Metso C-series,Sandvik CJ,and other leading crushers
Proven Performance 30-50%longer lifespan compared to standard manganese plates
Applications:Primary crushing of hard rock,slag processing,mining operations
Our jaw plates outlast competitors by an average of 40%in side-by-side field tests.
Hunan Shaofeng New Materials Co., Ltd. (sf-machine): Your Professional Crusher Wear Parts Solution Partner.
As a professional Jaw Liner manufacturer, we are a factory that can provide customized Jaw Liner according to your needs.
Available models for cone crush parts | ||
shanbao | PY series | PYB/PYD600,PYB/PYZ/PYD900,PYB/PYZ/PYD1200,PYB/PYZ/PYD1750 |
PYF series | PYF900,PYF1300.PYF1600,PYF2100 | |
symons | FT series | 2FT,3FT,4FT,4-1/4FT,5-1/2FT,7FT |
Mettso | HP series | HP100,HP200,HP300,HP400,HP500,HPЗ,HP4,HP5,HP6,HP900 |
GP series | GP100,GP100S,GP200S,GP220,GP330,GP300S,GP550,GP500S,GP7 | |
Sanvick | CH/CS series | CH420,CH430,CH440,CH830i,CH840i,CH660,CH860i,CH865i,CH870i,CH880, CH890i,CH895i,CS420,CS430,CS440,CS840i,CS660 |
Trlo | TC series | TC36S,TC36SH,TC51S,TC51SH,TC66S,TC66SH,TC5,TC6, TC84, TC84X,TC84XXHD |
TP series | TP260,TP350,TP450,TP600,TP900 | |
Telsmith | Titan"T series | T200,T300,T400,T500,T900 |
SBS&SBx series | SBS38,SBS44,SBS52,SBS57,SBS68,SBX44,SBX52,SBX57 | |
Available models for jaw crusher parts | ||
Mettso | C series | C80,C96,C106,C116,C120,C130,C150,C160,C200 |
Sanvick | CJ series | CJ815,CJ615,CJ613,CJ612,CJ412,CJ411,CJ409,CJ211 |
Terex | JCjs/w series | JC5460,JC3660,JS4552,JS3750,JC2260,JW55,JW42 |
Telsmith | Telsmith | H2238,H2550,H3244,H3450,H4448,H5060,H3042,H3055,H3648,H3258,H3858 |
Shanbao | PE series | PE150x250,PE250x400,PE400x600,PE500x750,PE600x900,PE750x1050, |
PEX series | PEX250x750,PEX250x1000,PEX250x1200,PEX300x1300 | |
Other | All other famous brands in china and abroad, please contact our sales managers |
High manganese casting material chemical composition | ||||||
Material | C | Si | Mn | P | S | Cr |
Mn13Cr2 | 1.05-1.35 | 0.30-0.90 | 12-14 | ≤0.06 | ≤0.04 | 1.8-2.5 |
Mn18cr2 | 1.05-1.35 | 0.30-0.90 | 17-19 | ≤0.06 | ≤0.04 | 1.8-2.5 |
Mn21Cr2 | 1.05-1.35 | 0.30-0.90 | 20-23 | ≤0.06 | ≤0.04 | 1.8-2.5 |
