As a leading global provider of wear-resistant material solutions, Hunan Shaofeng New Materials Co., Ltd. has consistently served the mining, construction, cement, and other industries with high-quality crusher wear parts. Our products are exported year-round, accounting for 60% of our total business. We understand the importance of accurately measuring the cone dimensions of wear parts for equipment efficiency, maintenance costs, and production safety. To this end, we have developed a simple and practical measurement method to help you quickly and accurately complete operations, maximize component life, and optimize equipment performance.
Why is it important to accurately measure the cone dimensions of wear parts?
Ensure compatibility: Accurate dimensions ensure that new wear parts fit perfectly with your equipment, reducing installation and commissioning time.
Prevent unplanned downtime: Regular measurements can identify wear trends, allowing for pre-planned replacements and avoiding production interruptions.
Control costs: Especially for international customers, accurate measurement reduces mis-purchases, improves supply chain efficiency, and lowers total cost of ownership.
Professional Measurement Steps: Measuring the Inner and Outer Diameters of the Large and Small Ends + Height
Tool Preparation: Use specialized tools such as a special measuring bar (or gauge), a tape measure, calipers, and a laser rangefinder.
Measuring the Inner and Outer Diameters of the Large and Small Ends:

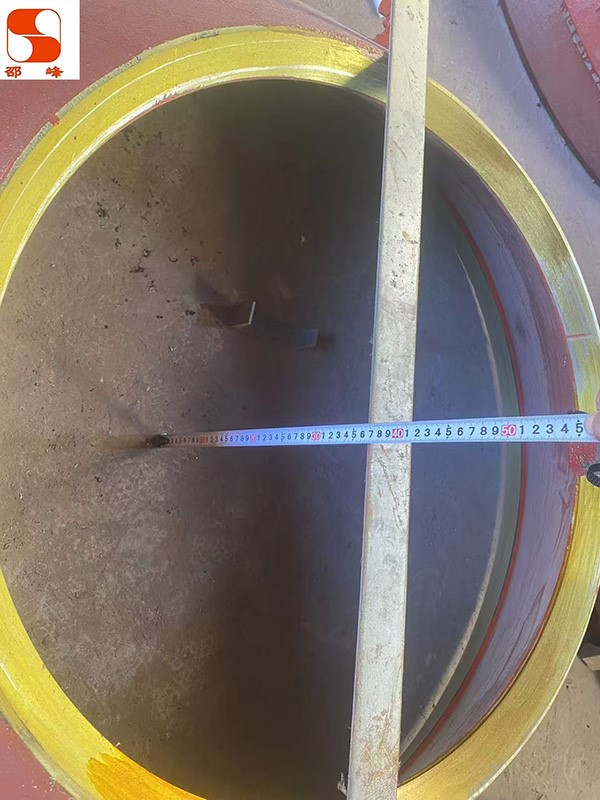

Place the special measuring bar horizontally on the large end (largest diameter) of the conical wear-resistant part. Slide it left and right to find the diameter that best fits the circle. Use a tape measure or caliper to read the scale on the bar and record the outer and inner diameters of the large end.

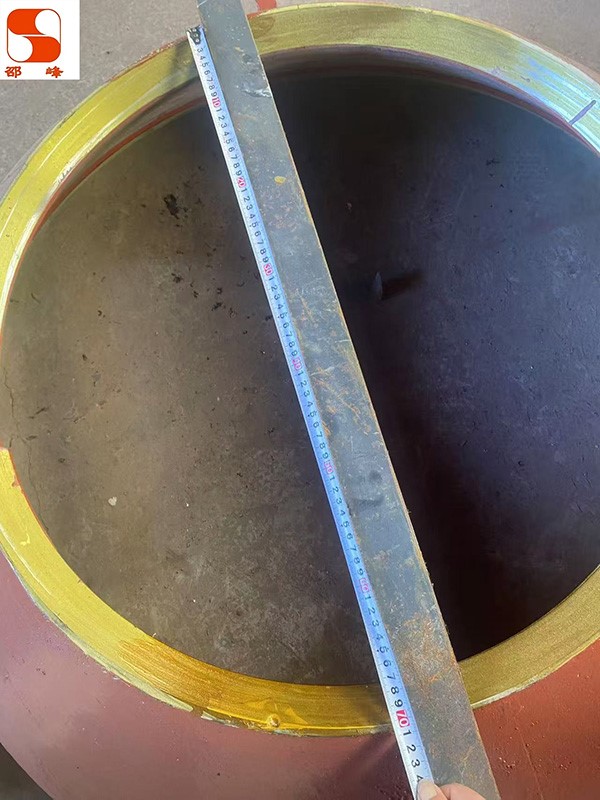

Use the same method to move the bar to the small end (smallest diameter), slide it until it fits the circle best, and measure and record the outer and inner diameters of the small end.
Measuring Height:

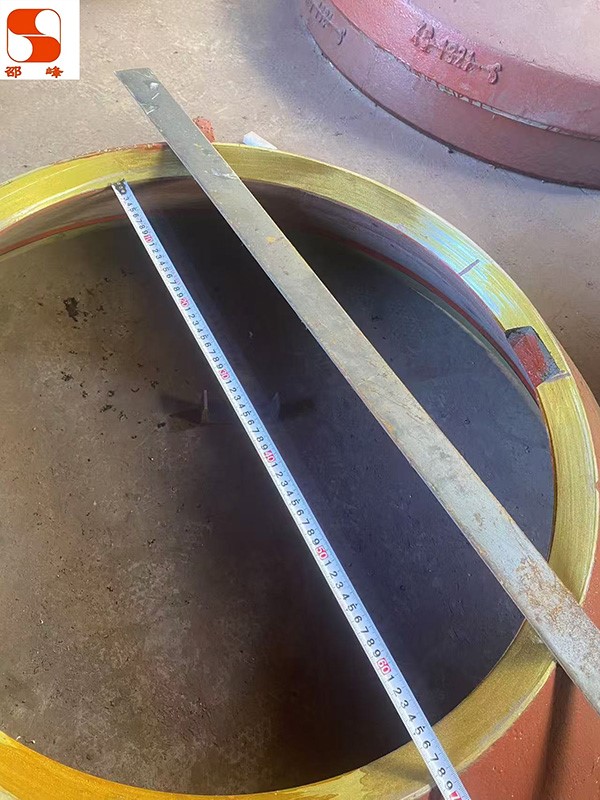

Place the bar vertically on the side of the cone and measure the vertical height from the large end to the small end along the axial direction. Ensure that the bar is parallel to the centerline of the cone to avoid tilt errors.
Data Verification:
Average multiple measurements to improve accuracy.
Compare the data with product drawings or specifications (such as the technical parameters provided by Hunan Shaofeng) to determine the degree of wear and determine replacement time.
Why choose Hunan Shaofeng New Materials?
We not only provide highly wear-resistant, long-life cone crusher parts, but also prioritize the service experience of our global customers. With 60% of our products exported, our team has extensive international project experience and offers multilingual technical support and customized solutions to help you streamline your measurement process and achieve efficient operations and maintenance.
For detailed product manuals, measurement tools, or technical consultation, please feel free to contact us. Hunan Shaofeng New Materials helps global customers reduce costs, increase efficiency, and achieve a win-win future!
