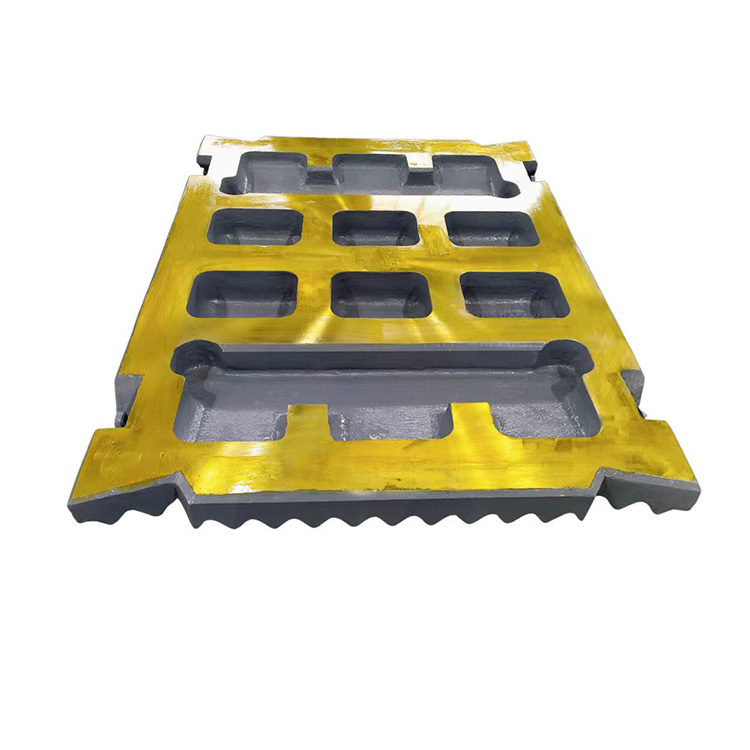

Fixed Jaw Die

Hunan Shaofeng New Material Co., Ltd.
Whatsapp：+86 177 0739 6762
+86 198 7337 1653
Email：sf.machine@outlook.com

Availability:



Inquire Add to Basket

Product Description

Overview

The fixed jaw plates we produce are made of high manganese steel, high chromium cast iron or low alloy steel according to the design, heated to a molten state in a furnace (e.g. high manganese steel needs to be heated to 1450-1500℃), and the composition is adjusted to ensure purity.Processing is carried out according to the material properties. For example, high manganese steel requires "water toughening treatment" (water quenching after heating at 1050-1100℃), high chromium cast iron requires "quenching + tempering", and low alloy steel is often subjected to "quenching and tempering treatment" to improve hardness, toughness and other properties.We will perform turning, milling and other processing on the blank to correct dimensional errors and ensure that the mounting hole position, work surface flatness and other aspects meet assembly requirements. In some scenarios, we will also add surface strengthening steps (such as surfacing wear-resistant layer) to further improve wear resistance.

Available Model

*Available models for cone crush parts*
shanbao	PY series	PYB/PYD600,PYB/PYZ/PYD900,PYB/PYZ/PYD1200,PYB/PYZ/PYD1750
shanbao	PYF series	PYF900,PYF1300.PYF1600,PYF2100
symons	FT series	2FT,3FT,4FT,4-1/4FT,5-1/2FT,7FT
Mettso	HP series	HP100,HP200,HP300,HP400,HP500,HPЗ,HP4,HP5,HP6,HP900
Mettso	GP series	GP100,GP100S,GP200S,GP220,GP330,GP300S,GP550,GP500S,GP7
Sanvick	CH/CS series	CH420,CH430,CH440,CH830i,CH840i,CH660,CH860i,CH865i,CH870i,CH880, CH890i,CH895i,CS420,CS430,CS440,CS840i,CS660
Trlo	TC series	TC36S,TC36SH,TC51S,TC51SH,TC66S,TC66SH,TC5,TC6, TC84, TC84X,TC84XXHD
	TP series	TP260,TP350,TP450,TP600,TP900
Telsmith	Titan"T series	T200,T300,T400,T500,T900
Telsmith	SBS&SBx series	SBS38,SBS44,SBS52,SBS57,SBS68,SBX44,SBX52,SBX57

*Available models for jaw crusher parts*
Mettso	C series	C80,C96,C106,C116,C120,C130,C150,C160,C200
Sanvick	CJ series	CJ815,CJ615,CJ613,CJ612,CJ412,CJ411,CJ409,CJ211
Terex	JCjs/w series	JC5460,JC3660,JS4552,JS3750,JC2260,JW55,JW42
Telsmith	Telsmith	H2238,H2550,H3244,H3450,H4448,H5060,H3042,H3055,H3648,H3258,H3858
Shanbao	PE series	PE150x250,PE250x400,PE400x600,PE500x750,PE600x900,PE750x1050, PE900x1200,PE100x1200,PE1200x1500,PE1500x1800
	PEX series	PEX250x750,PEX250x1000,PEX250x1200,PEX300x1300
Other Brands	All other famous brands in china and abroad, please contact our sales managers

Product Advantages

High manganese casting material chemical composition
Material	C	Si	Mn	P	S	Cr
Mn13Cr2	1.05-1.35	0.30-0.90	12-14	≤0.06	≤0.04	1.8-2.5
Mn18cr2	1.05-1.35	0.30-0.90	17-19	≤0.06	≤0.04	1.8-2.5
Mn21Cr2	1.05-1.35	0.30-0.90	20-23	≤0.06	≤0.04	1.8-2.5

Hunan Shaofeng New Materials Co., Ltd.Professional Fixed Jaw Die Manufacturer, Supplier and Customizable Factory
