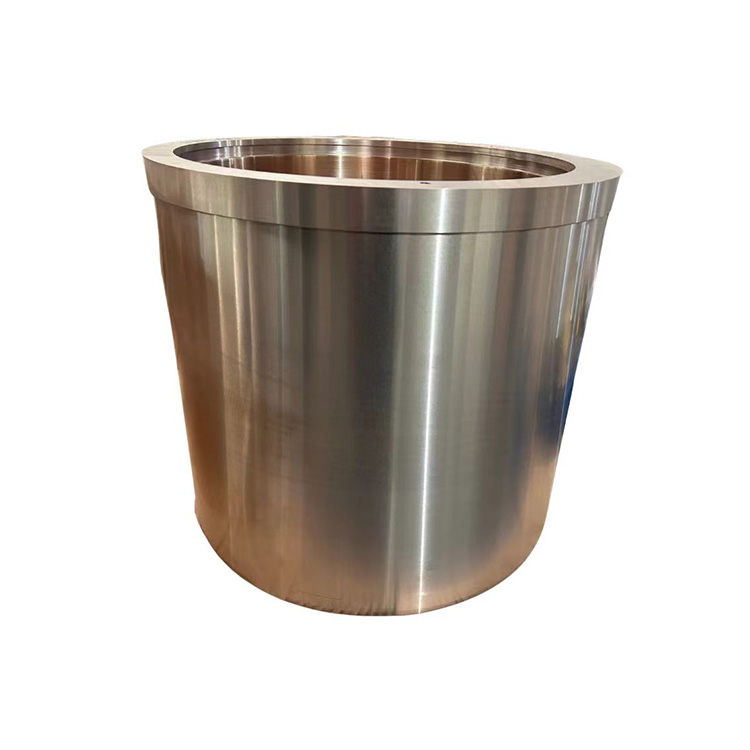

High-Performance Inner Eccentric Bushing for Critical Crusher Applications
Precision-Engineered for Mining & Aggregate Operations
Technical Specifications
Parameter Specification Standard
Material C93700 High-Lead Tin Bronze ASTM B505
Lead Content 22-26% ISO 4382
Compressive Strength ≥160 MPa DIN 50106
Thermal Conductivity 62 W/m·K ASTM E1461
Tolerance Class ISO 286 H7/g6 OEM Drawing Compliance
Precision Compatibility
▌ Supported Crusher Series
Brand/Series Compatible Models
Metso HP/HPB HP100, HP200, HP300, HP400, HP500
Sandvik H-Series H2800, H3800, H4800, H6000, H7800, H8000
Symons 2ft, 3ft, 4ft, 4¼ft, 5½ft, 7ft (Std/Short Head)
Other Spring Cone Customizable per technical drawings
