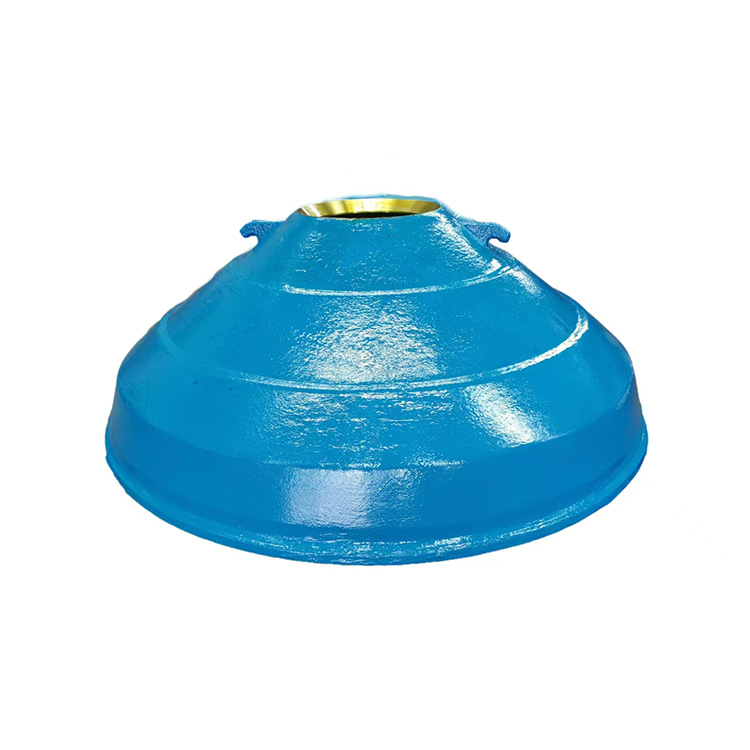

Q: What is the primary function of the mantle in a cone crusher?
A: The mantle's core function is to gyrates within the crushing chamber, exerting compressive force against feed material pinned between it and the stationary bowl liner. This action fractures the material into smaller, uniformly sized particles for downstream processing.
Q: How frequently should the mantle and bowl liner be replaced?
A: Replacement intervals typically range from 400 to 800 operational hours, but vary significantly based on:
• Abrasiveness of crushed material (e.g., granite vs. limestone)
• Crusher operating parameters (e.g., speed, closed-side setting)
• Feed size distribution and moisture content
• Presence of contaminants (e.g., tramp metal)
Regular wear measurement is critical for optimal scheduling.
Q: What signs indicate the need for mantle and bowl liner replacement?
A: Key indicators include:
• Visible wear: Thinning beyond manufacturer tolerances, uneven profiles, or loss of original geometry
• Structural damage: Cracks, fractures, or significant deformation
• Performance decline: Decreased throughput, inconsistent product sizing, or frequent power spikes
• Operational anomalies: Unusual vibrations, metallic grinding noises, or increased "ring bounce"
Q: How is proper lubrication for the mantle and bowl liner ensured?
A: Strict adherence to OEM specifications is mandatory:
Lubricant type: Use only manufacturer-approved grease/oil grades
Intervals: Follow prescribed re-lubrication schedules (hourly/daily/weekly)
Quantity: Apply exact volumes to prevent under/over-lubrication
Monitoring: Regularly check lubrication system pressure/temperature and inspect grease purity
Neglecting lubrication accelerates wear and risks catastrophic bearing failure.
Q: Which materials are used for manufacturing mantles and bowl liners?
A: These components are cast from ultra-wear-resistant alloys, primarily:
Manganese Steel (Mn14%/Mn18%/Mn22%): Industry standard for most applications; combines impact toughness with work-hardening capability.
Chrome-Moly Steel (e.g., 4130/4140): For high-stress environments requiring enhanced hardness and gouging resistance.
Specialized Alloys: Including martensitic white irons (Ni-Hard), TIC-welded composites, or proprietary high-chrome steels for extreme abrasion.
Material selection depends on crushed ore characteristics and economic optimization.
