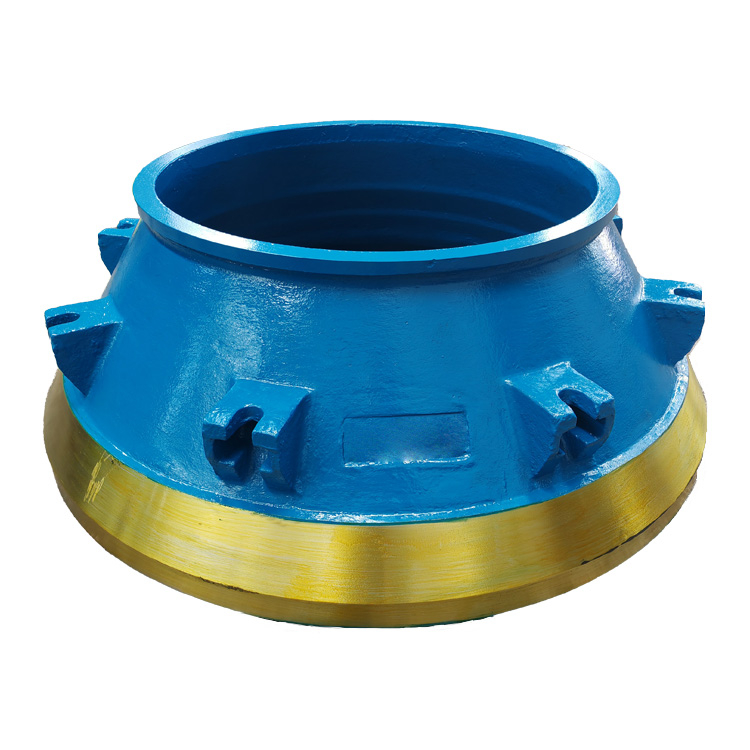

The concave lining plate of the crusher is the core wear-resistant component of the fixed cone part, which forms an annular crushing chamber corresponding to the crushing wall of the moving cone, directly bearing the extrusion and impact loads of the material.
The concave of the crusher produced by our factory is mostly made of high manganese steel (such as Mn13) or manganese chromium alloy (such as Mn13Cr2), which utilizes the surface hardening characteristics of the material after impact to improve wear resistance while maintaining the toughness of the matrix to prevent fracture. Under some working conditions, composite materials will be used to embed hard alloy particles in the wear area to enhance wear resistance.
Cone Crusher Wear Parts: Technical Specifications
Common Components:
Concaves (Bowl Liners), Mantles
Standard Materials:
Manganese Steels: Mn13, Mn13Cr2, Mn18, Mn18Cr2, Mn22Cr2
Premium Option: TIC-Insert Reinforced Mn18Cr2
Casting Processes:
V-Process Casting
Sand Casting
Suitable Application Materials:
Rock Types:
Pebbles, Granite, Basalt, Limestone, Quartzite, Diabase
Metal Ores:
Iron Ore, Copper Ore, Gold Ore
Hunan Shaofeng New Materials Co., Ltd. (sf-machine): Your Professional Crusher Wear Parts Solution Partner.
As a professional crusher parts manufacturer and distributor, Hunan Shaofeng New Materials Co., Ltd. (sf-machine) is committed to providing a full range of high-quality parts from 5 kg to 10,000 kg. Our core products include:
Wear-resistant hammer/plate hammer: Manganese steel/ceramic material, impact and wear resistance
High-performance liner: Titanium carbide insert technology, double life
Branded precision spare parts: Adapt to global mainstream crushers
With wear-resistant parts as the core, drive equipment excellent performance:
Wear-resistant parts and spare parts are the cornerstone of sf-machine's business. Through continuous innovation of materials and processes, we are committed to extending component life, improving equipment performance and output.
Precisely matched manganese steel solutions:
For different working conditions and customer needs, we provide Mn13, Mn18, Mn22 series manganese steel parts, which can be customized with chromium (Cr). All products implement strict internal control standards, with performance far exceeding the norm and longer life.
Huge inventory covering mainstream models worldwide
10,000+ models in stock, suitable for mainstream equipment worldwide including jaw crusher, cone crusher, gyratory crusher, roller crusher, hammer crusher, HSI, VSI.
Work together to create value:
sf-machine adheres to the concept of win-win cooperation. Relying on deep experience, strong engineering/metallurgical R&D and manufacturing capabilities, we work closely with customers to provide customized wear-resistant solutions.
Contact sf-machine now to help you:
✅ Extend life ✅ Increase production ✅ Optimize supply ✅ Reduce cost (TCO)
